| SPECIFICATIONS |
| Brand |
PNY |
| Series |
XLR8 Series |
| Model |

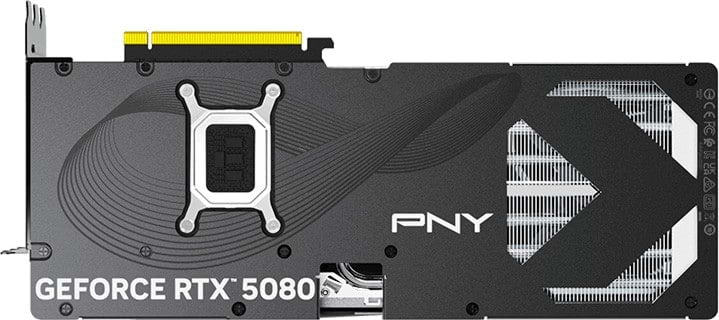

GeForce RTX 5080 XLR8 OC 16G (VCG508016TFXPB1-O) |
| Chipset |
| GPU |
GeForce RTX 5080 |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCIe 5.0 x16 |
| Base Clock |
2300 MHz |
| Boost Clock |
Up to 2730 MHz |
| CUDA Cores |
10,752 Cores |
| GPU Architecture |
NVIDIA Blackwell |
| Memory |
| Effective Memory Clock |
30Gbps |
| Memory Size |
16GB |
| Memory Interface |
256-bit |
| Memory Type |
GDDR7 |
| 3D API |
| DirectX |
Microsoft DirectX 12.1 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Vulkan |
Vulkan 1.4 API |
| Connectivity |

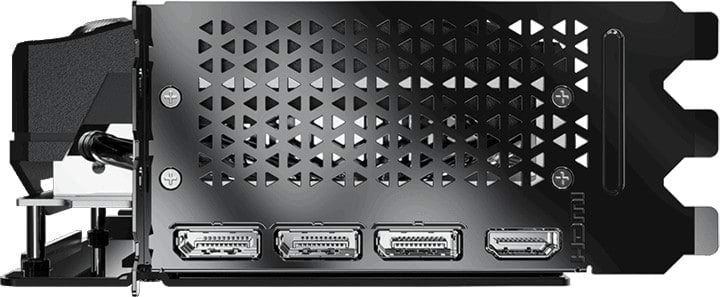

| Ports |
1x HDMI 2.1b |
| 3x DisplayPort 2.1a |
| HDCP Support |
Yes, 2.3 |
| Multi-Monitor Support |
Up to 4 |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| SLI Support |
N/A |
| Features |

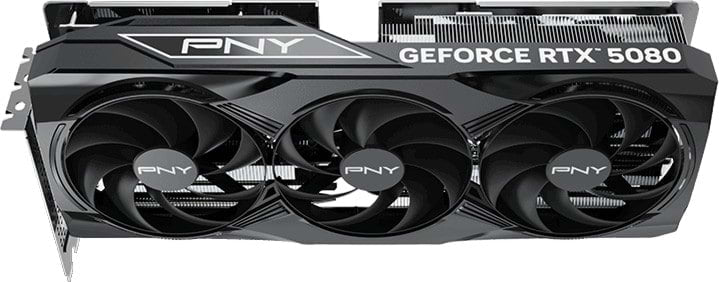

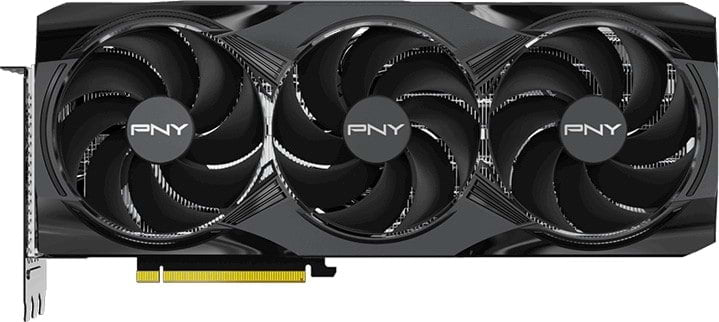

Triple Fan Cooling System |
| Solid Cooler Physical Connection with PCI Bracket |
| PNY VELOCITYX Control Software |
| NVIDIA Optical Flow Accelerator Technology |
| 4th Gen Ray Tracing Cores |
| 5th Gen Tensor Cores |
| PCI Express Gen 5 |
| Real-Time Ray Tracing Technology |
| NVIDIA DLSS 4.0 with Frame Generation and Frame Warp |
| NVIDIA GeForce Game Ready & Studio Drivers |
| NVIDIA G-Sync Premium |
| NVIDIA Reflex 2 |
| NVIDIA Broadcast |
| NVIDIA AV1 Encoder |
| NVIDIA Omniverse 3D Design |
| NVIDIA Canvas |
| NVIDIA GPU Boost |
| NVIDIA Encoder, 9th Generation |
| NVIDIA Decoder, 6th Generation |
| Power Requirements |
| Total Board Power |
360W |
| Recommended Power Supply |
850W |
| Power Connector |
1x 16-Pin 450W 12VHPWR Connector (or 3x 8-pin PCI PEG Connectors) |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
3.0 Slot |
| Dimensions |
328.67 x 137.66 x 59.69mm (L x W x H) |
| RGB |
N/A |
| Boxed Accessories |
1x 12V-2x6 to 3x PCIe 8pin adapter |
| Warranty Information |
| Warranty |
3 Year Warranty |
