| SPECIFICATIONS |

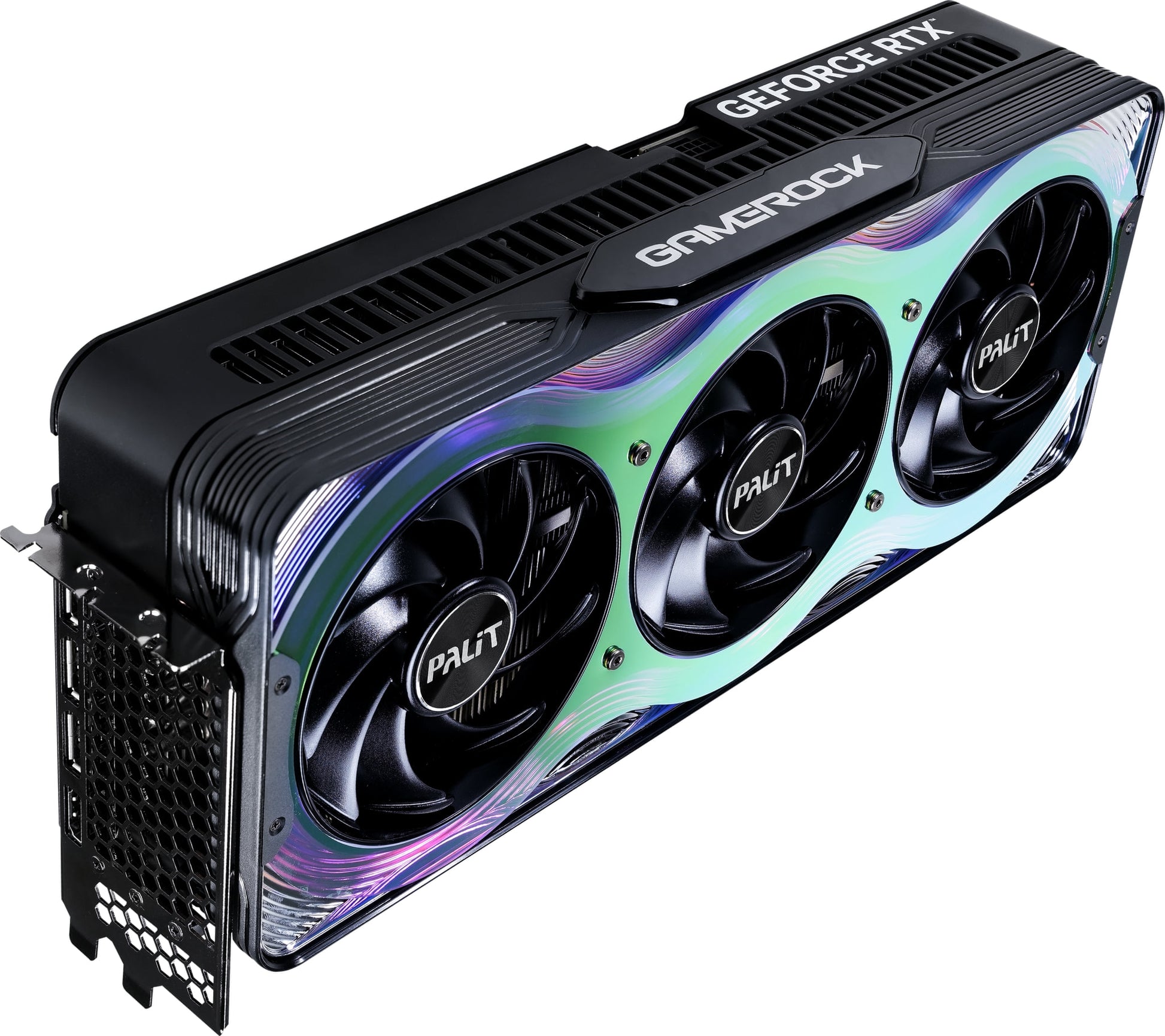

| Brand |
Palit |
| Series |
Game Rock Series |
| Model |
NE75090S19R5-GB2020G |
| Chipset |
| GPU |
GeForce RTX 5090 |
| Chipset Manufacturer |
NVIDIA |
| Interface |
PCIe 5.0 x16 |
| Base Clock |
2017 MHz |
| Boost Clock |
2527 MHz |
| CUDA Cores |
21760 Cores |
| GPU Architecture |
NVIDIA Blackwell 2.0 |
| Memory |
| Effective Memory Clock |
28Gbps |
| Memory Size |
32GB |
| Memory Interface |
512-bit |
| Memory Type |
GDDR7 |
| 3D API |
| DirectX |
Microsoft DirectX 12.1 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Vulkan |
Vulkan 1.4 API |
| Connectivity |

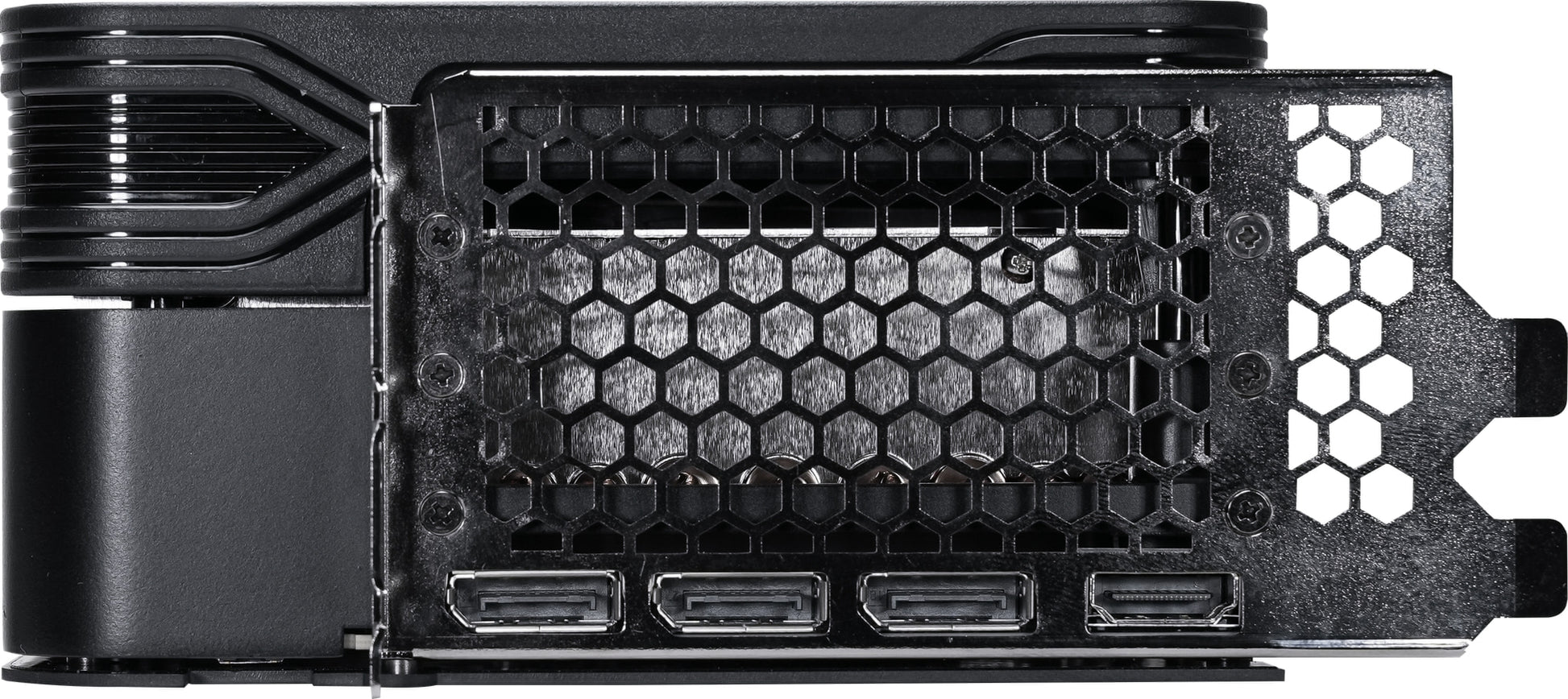

| Ports |
1x HDMI 2.1b |
| 3x DisplayPort 2.1b |
| HDCP Support |
Yes |
| Multi-Monitor Support |
Up to 4 |
| Maximum Digital Resolution |
7680 x 4320 |
| VR Ready |
Yes |
| General |
| SLI Support |
N/A |
| Features |
Chameleon Panel |
| Turbo Fan 4.0 |
| High Performance Vapor Chamber |
| ARGB Sync EVO |
| Dual Bios |
| Palit Thunder Master |
| NVIDIA Optical Flow Accelerator Technology |
| 4th Gen Ray Tracing Cores |
| 5th Gen Tensor Cores |
| PCI Express Gen 5 |
| Real-Time Ray Tracing Technology |
| NVIDIA DLSS 4.0 with Frame Generation and Frame Warp |
| NVIDIA GeForce Game Ready & Studio Drivers |
| NVIDIA G-Sync Premium |
| NVIDIA Reflex 2 |
| NVIDIA Broadcast |
| NVIDIA AV1 Encoder |
| NVIDIA Omniverse 3D Design |
| NVIDIA Canvas |
| NVIDIA GPU Boost |
| NVIDIA Encoder, 9th Generation |
| NVIDIA Decoder, 6th Generation |
| Power Requirements |
| Recommended Power Supply |
1200W |
| Power Connector |
1x 16-Pin |
| Physical Aspects |
| Form Factor |
ATX |
| Slot Width |
3.5 Slot |
| Dimensions |
331.9 x 150 x 70.4mm (L x W x H) |
| Warranty Information |
| Warranty |
3 Year Warranty |
